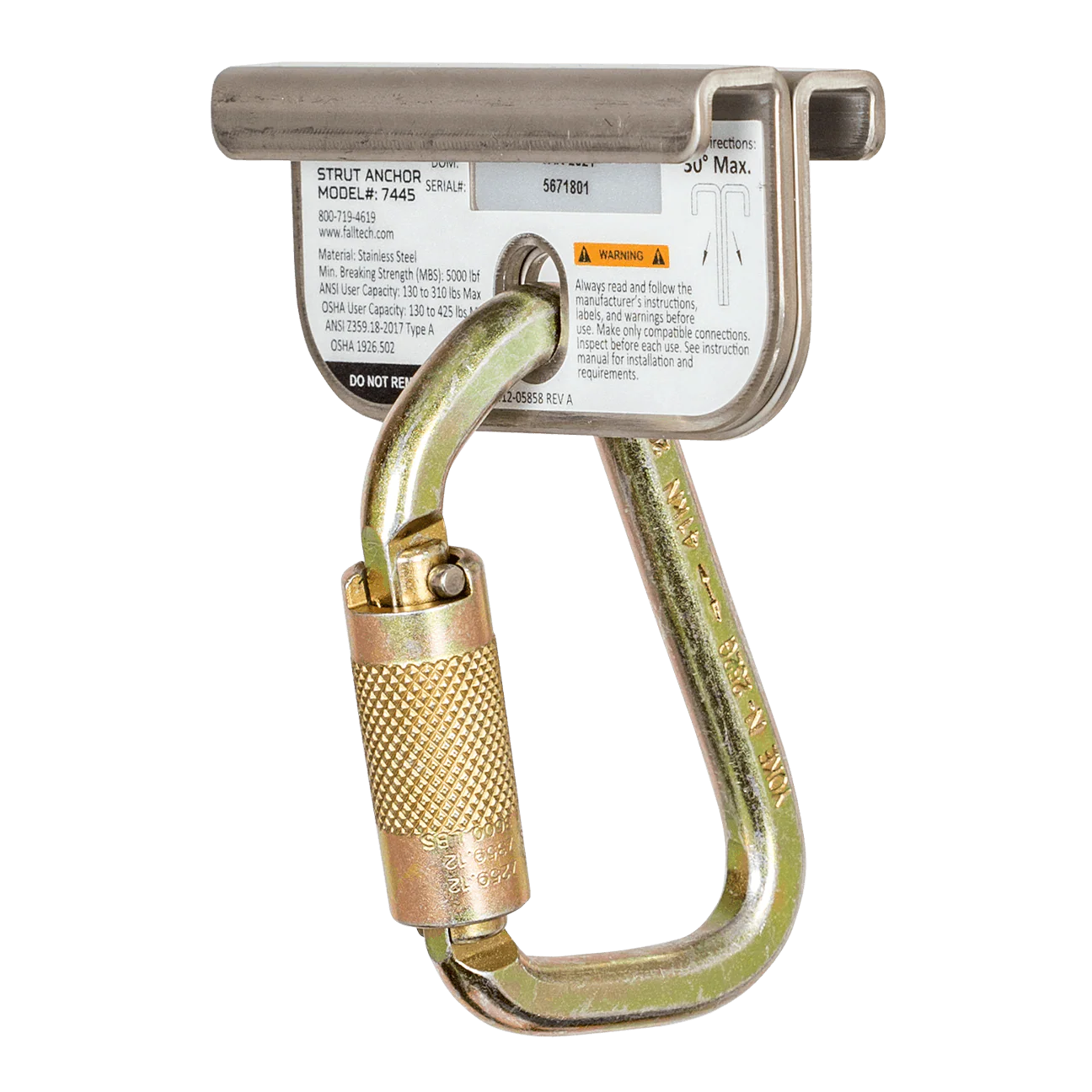

Strut Anchor
Strut Anchor
FEATURES
- Simple, lightweight design is easy to install and reusable
- Fits 1-5/8" wide strut material
- Features twin stainless steel plate design with plated alloy carabiner
- Provides horizontal mobility along overhead strut material
- Complies with ANSI Z359.18-2017 Type A
MATERIAL SPECIFICATIONS
Bracket Plates: Stainless Steel
Carabiner: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
PERFORMANCE SPECIFICATIONS
Static Strength: 5,600 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheets/Brochure
COMPLIANT WITH:
ANSI Z359.18-2017 OSHA 1926.502 and 1910.66
$43.05
Original: $123.00
-65%Strut Anchor—
$123.00
$43.05Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Strut Anchor
FEATURES
- Simple, lightweight design is easy to install and reusable
- Fits 1-5/8" wide strut material
- Features twin stainless steel plate design with plated alloy carabiner
- Provides horizontal mobility along overhead strut material
- Complies with ANSI Z359.18-2017 Type A
MATERIAL SPECIFICATIONS
Bracket Plates: Stainless Steel
Carabiner: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
PERFORMANCE SPECIFICATIONS
Static Strength: 5,600 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 425 lb max.
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheets/Brochure
COMPLIANT WITH:
ANSI Z359.18-2017 OSHA 1926.502 and 1910.66
