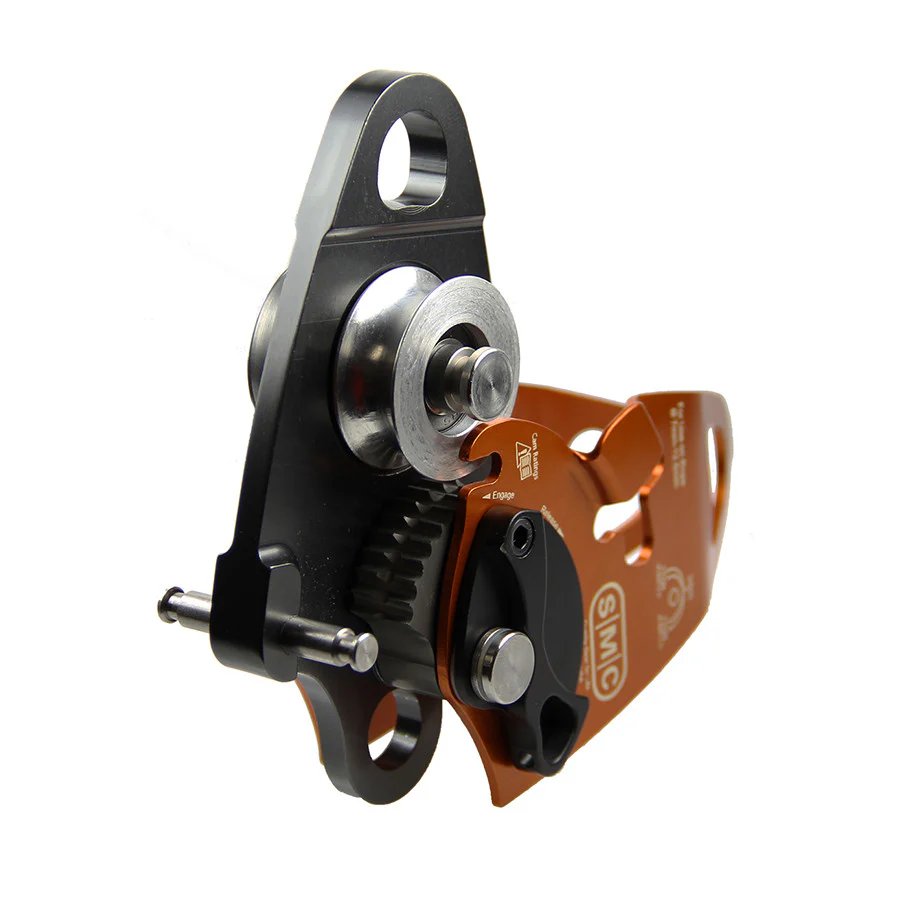

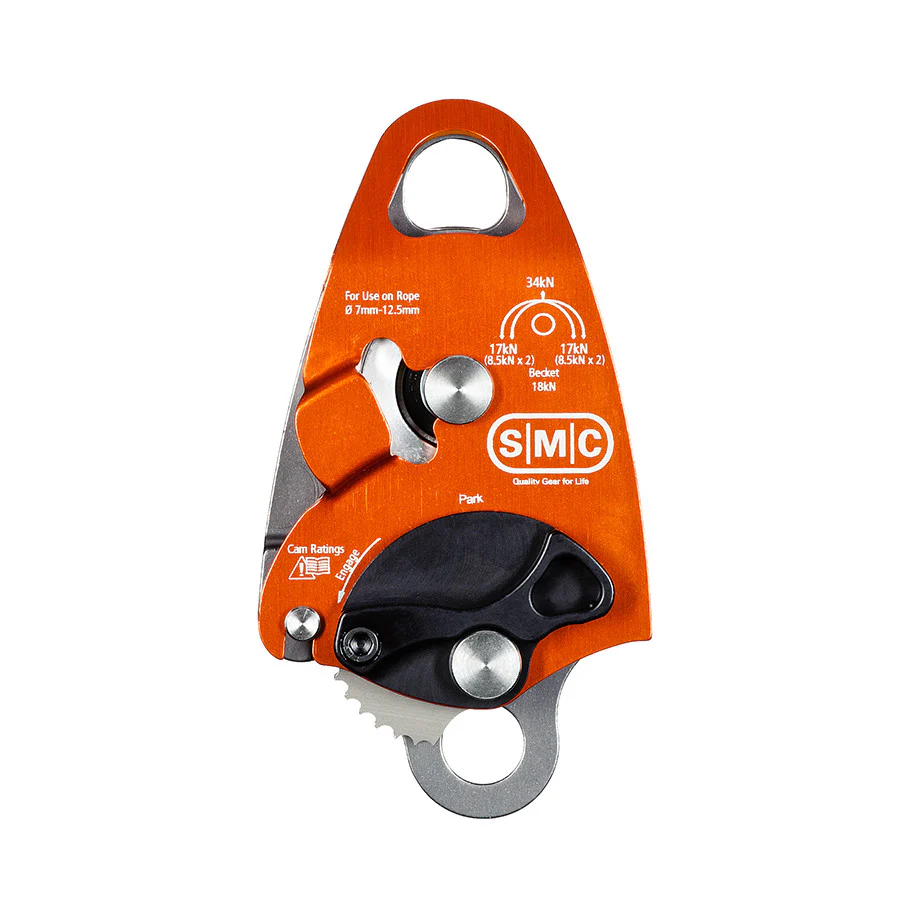

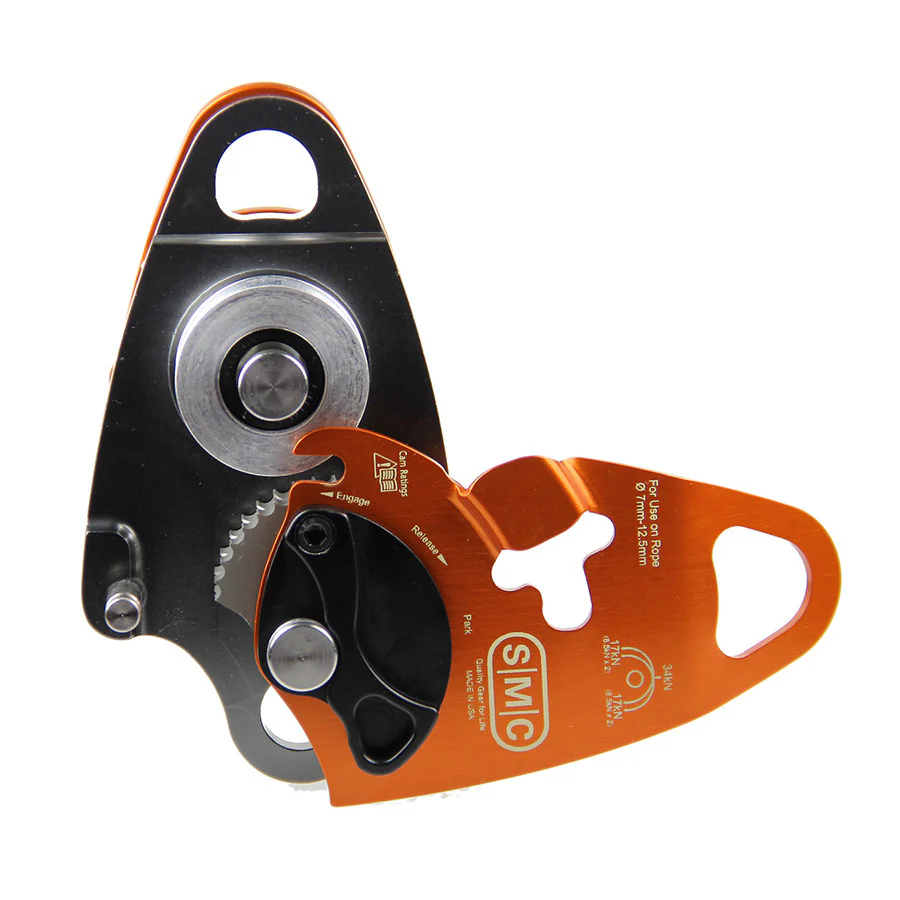

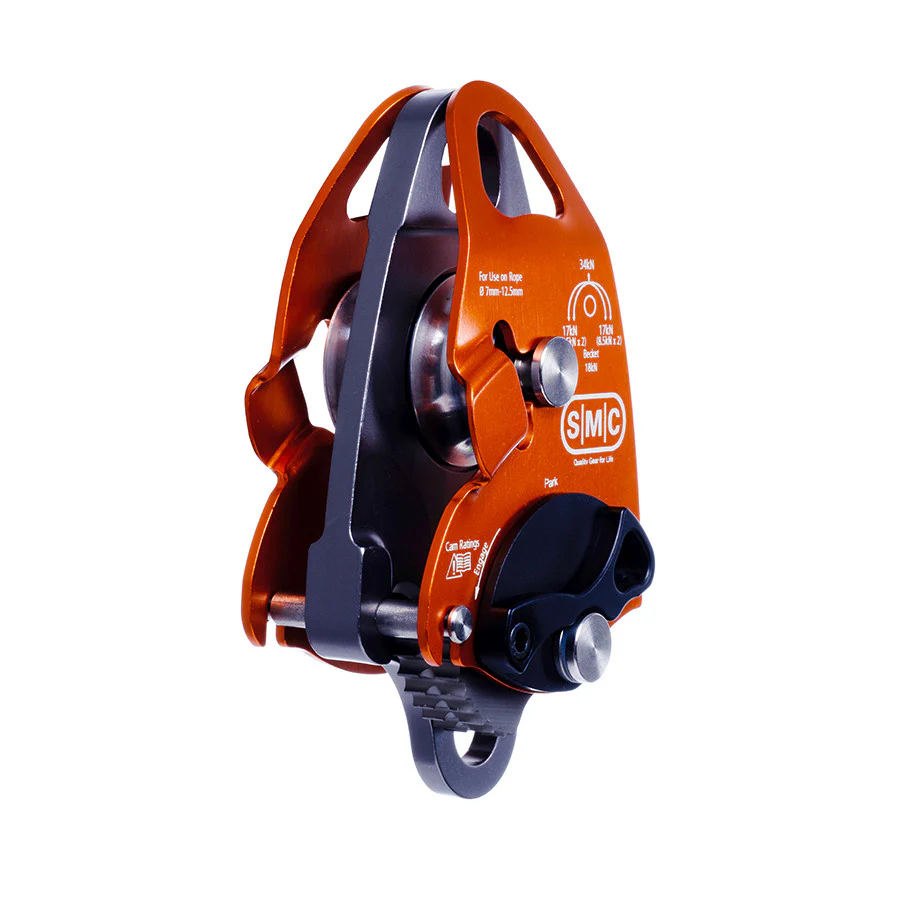

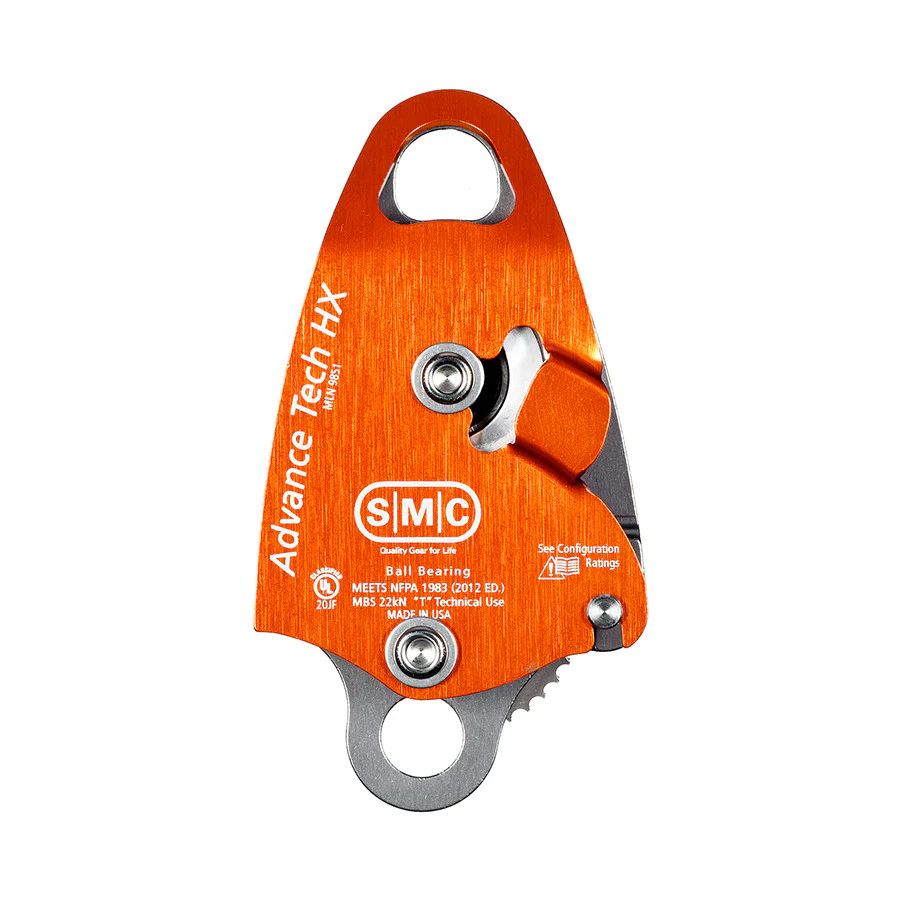

PMI SMC Advance Tech HX Pulley
When a small mechanical advantage system is being used for your rescue application, trust in the SMC Advance Tech HX Pulley to act as a reliable double pulley. This item has an integrated cam that provides immediate progress capture for added safety.
Features
- High quality aluminum construction
- Anodized to help prevent corrosion
- Supports 7mm – 12.5mm rope
- Stainless steel pins retain the rope when a rigged system is pre-packed
- NFPA 1983 (2012), T
- Berry Compliant
- Made in the USA
Specs
- Color: Orange/Grey
- Type: Double Pulley-Capture
- MBS: 34 kN (7644 lbf)
- Weight: 9.5 oz (270 g)
- Length: 5.08" (12.9 cm)
- Width: 2.74" (6.9 cm)
- Height: 1.97" (5.0 cm)
- Becket Strength: 18 kN
- Axle: Ball Bearing
- Sheave: 1.37" Aluminum
- Tread: 1.00"
- Max Rope Size: 12.5 mm
- Material: Anodized Aluminum
$64.45
Original: $184.14
-65%PMI SMC Advance Tech HX Pulley—
$184.14
$64.45Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
When a small mechanical advantage system is being used for your rescue application, trust in the SMC Advance Tech HX Pulley to act as a reliable double pulley. This item has an integrated cam that provides immediate progress capture for added safety.
Features
- High quality aluminum construction
- Anodized to help prevent corrosion
- Supports 7mm – 12.5mm rope
- Stainless steel pins retain the rope when a rigged system is pre-packed
- NFPA 1983 (2012), T
- Berry Compliant
- Made in the USA
Specs
- Color: Orange/Grey
- Type: Double Pulley-Capture
- MBS: 34 kN (7644 lbf)
- Weight: 9.5 oz (270 g)
- Length: 5.08" (12.9 cm)
- Width: 2.74" (6.9 cm)
- Height: 1.97" (5.0 cm)
- Becket Strength: 18 kN
- Axle: Ball Bearing
- Sheave: 1.37" Aluminum
- Tread: 1.00"
- Max Rope Size: 12.5 mm
- Material: Anodized Aluminum
