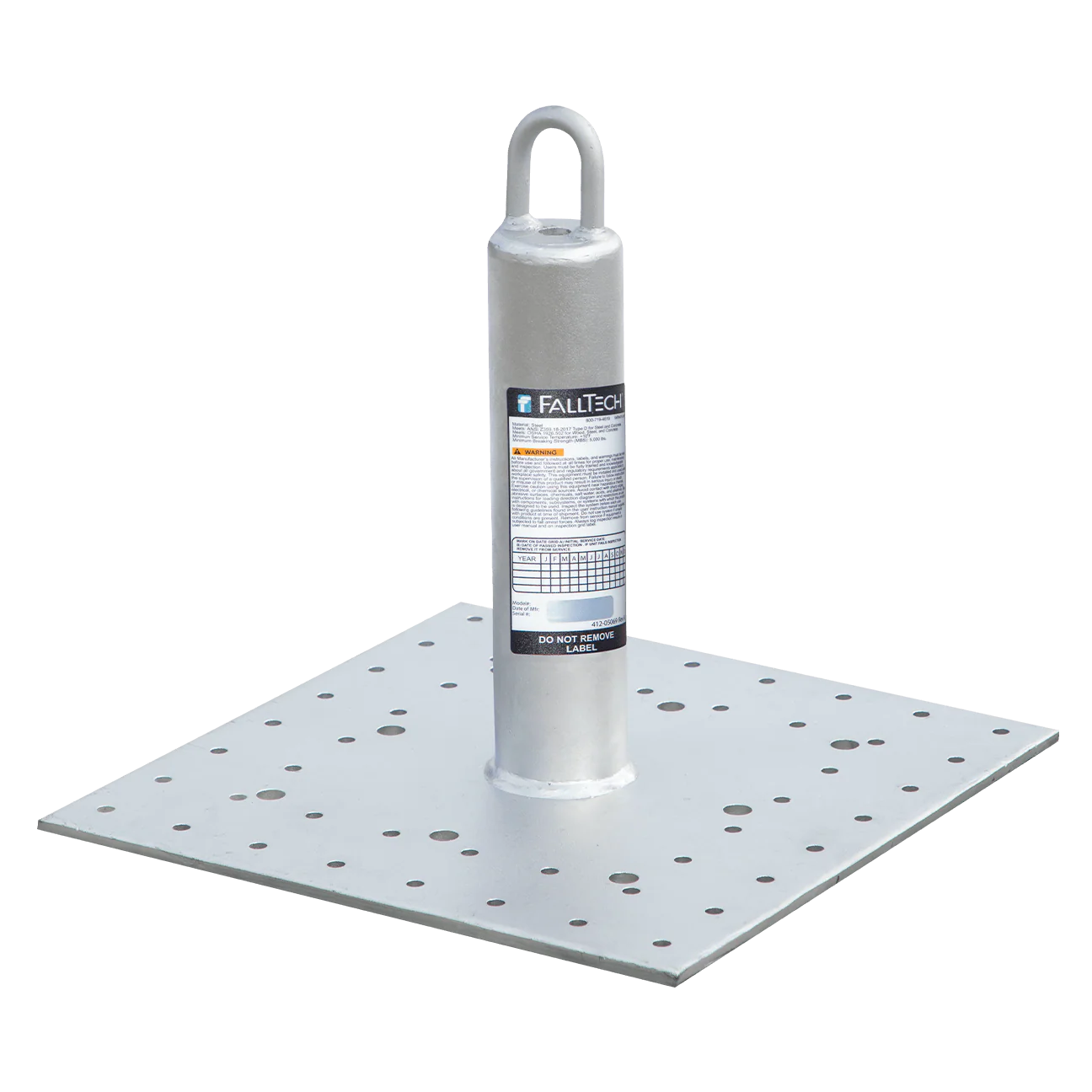

Post Anchor with Welded-eye for Wood, Concrete and Steel
Post Anchor with Welded-eye for Wood, Concrete and Steel
FEATURES
- Features fixed-position welded-eye connection for user's preferred fall arrest components
- Welded galvanized steel post and plate construction.
- 16" x 16" x 1/2" base plate provides durable permanent installation to wood, concrete and steel structures
- Available in 12" and 18" post heights to elevate user's connections above the walking/working surface
- Features 1-1/4" x 2" welded eye
- Requires user-supplied fasteners for installation
- Complies with ANSI Z359.18-2017
MATERIAL SPECIFICATIONS
Post Anchor: Galvanized carbon steel
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
- 78012WCSWE - 12"
- 78218WCSWE - 18"
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure
COMPLIANT WITH:
ANSI Z359.18-2017 OSHA 1926.502
Select Size
From $162.22
Original: $463.50
-65%Post Anchor with Welded-eye for Wood, Concrete and Steel—
$463.50
$162.22Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Post Anchor with Welded-eye for Wood, Concrete and Steel
FEATURES
- Features fixed-position welded-eye connection for user's preferred fall arrest components
- Welded galvanized steel post and plate construction.
- 16" x 16" x 1/2" base plate provides durable permanent installation to wood, concrete and steel structures
- Available in 12" and 18" post heights to elevate user's connections above the walking/working surface
- Features 1-1/4" x 2" welded eye
- Requires user-supplied fasteners for installation
- Complies with ANSI Z359.18-2017
MATERIAL SPECIFICATIONS
Post Anchor: Galvanized carbon steel
PERFORMANCE SPECIFICATIONS
Static Strength: 5,000 lb min.
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
- 78012WCSWE - 12"
- 78218WCSWE - 18"
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure
COMPLIANT WITH:
ANSI Z359.18-2017 OSHA 1926.502
