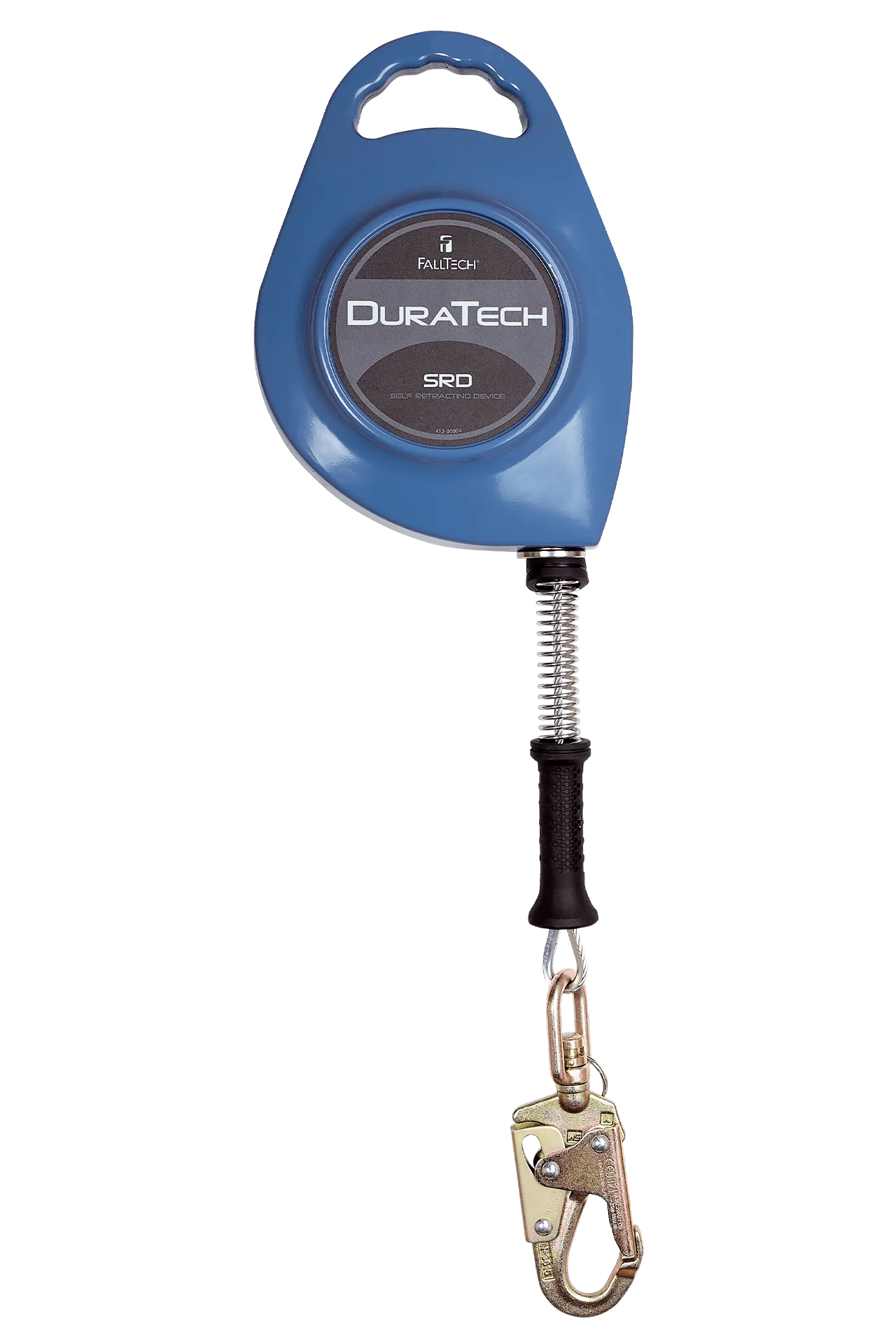

DuraTech® SRL with 30' Galvanized Cable and Side-payout Aluminum Housing
DuraTech® SRL with 30' Galvanized Cable and Side-payout Aluminum Housing
FEATURES
- 3/16" galvanized steel cable lifeline with load-indicating swivel snap hook
- Side-payout configuration delivers smooth lifeline operation.
- Internal inertial braking system with dual disc brakes provides superior deceleration
- Lifeline assembly includes integrated recoil spring to reduce retraction lock-up
- Integrated lifeline hand-grip simplifies dorsal connection
- Stackable housing design and handle provide easy installation and storage
- Complies with ANSI Z359.14-2014
MATERIAL SPECIFICATIONS
Cable: 3/16" galvanized steel; 3,400 lb min. static strength
Lifeline Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
PERFORMANCE SPECIFICATIONS
Static Strength: 3,000 lb min.
ANSI SRL Class: Class A
Avg. Arrest Force: 1,350 lb
Max. Arrest Force: 1,800 lb
Max. Arrest Distance: 24"
ANSI User Capacity: 130 to 310 lb max.
OSHA User Capacity: 130 to 310 lb max.
SIZES & PART NUMBERS
- 7226C - 15' (ANSI Compliant)
- 7227C - 20' (ANSI Compliant)
- 7229C - 25' (ANSI Compliant)
- 7232C - 30' (ANSI Compliant)
- 7268C - 50' (ANSI Compliant)
- C7268C - 50' (CSA Compliant)
- 7265C - 60' (ANSI Compliant)
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure
COMPLIANT WITH:
ANSI Z359.14-2014
OSHA 1926.502 and 1910.66
