Doughty Hanging Clamp – 500Kg
Doughty Hanging Clamp – 500Kg

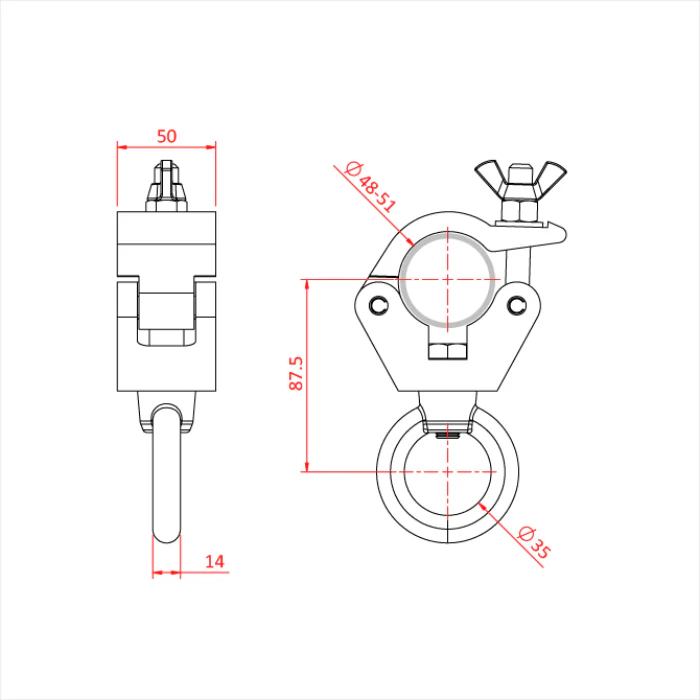

The industry standard half coupler factory fitted with an Eye Nut. A high tensile extruded aluminium clamp that is suitable for 48mm to 51mm (1.89″ – 2.01″) diameter tubes and is 50mm (1.97″) wide. Ideal for trussing as it will not damage the cords.
Available in polished silver or powder coated black.
WLL: 500Kg
Downloads:
Key Features:
- Industry standard half coupler with factory-fitted Eye Nut
- Constructed from high tensile extruded aluminium
- Compatible with tube diameters from 48mm to 51mm (1.89″ – 2.01″)
- Clamp width of 50mm (1.97″)
- Available in polished silver or powder coated black finish
Specifications:
- WLL: 500Kg
- Tube Diameter: 48mm – 51mm (1.89” – 2.01”)
- Clamp Width: 50mm (1.97")
- Material: High tensile extruded aluminium
- Finish Options: Polished silver or powder coated black
References:
- Data Sheet: T57207-T57208
- Manufacturer: Doughty
- Application: Trussing and rigging support
