Doughty 35mm Atom Half Coupler

Doughty 35mm Atom Half Coupler

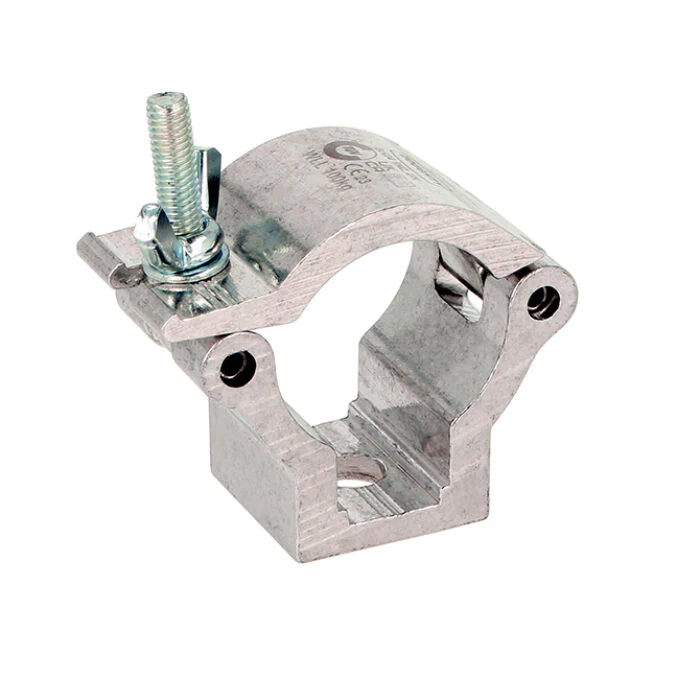

A high tensile extruded aluminium clamp that is suitable for 35mm (1.38″) diameter tubes. It has a WLL of 100Kg and is 30mm (1.18″) wide. Slotted to hold captive an M8 or M10 nut or bolt head. Ideal for decorative trussing as it will not damage the cords. Available in polished silver or powder coated black.

Downloads:

User Manual

---

Key Features:

• High tensile extruded aluminium construction
• Compatible with 35mm (1.38″) diameter tubes
• Working Load Limit (WLL) of 100Kg
• Slotted design to hold captive M8 or M10 nut or bolt head
• Available in polished silver or powder coated black finish

---

Specifications:

• WLL: 100Kg
• Tube Diameter: 35mm (1.38")
• Clamp Width: 30mm (1.18")
• Material: High tensile extruded aluminium
• Nut/Bolt Compatibility: M8 or M10

---

References:

• Doughty Engineering Official Data Sheet
• Product Code: T58900 / T5890001
• Decorative Trussing Applications
