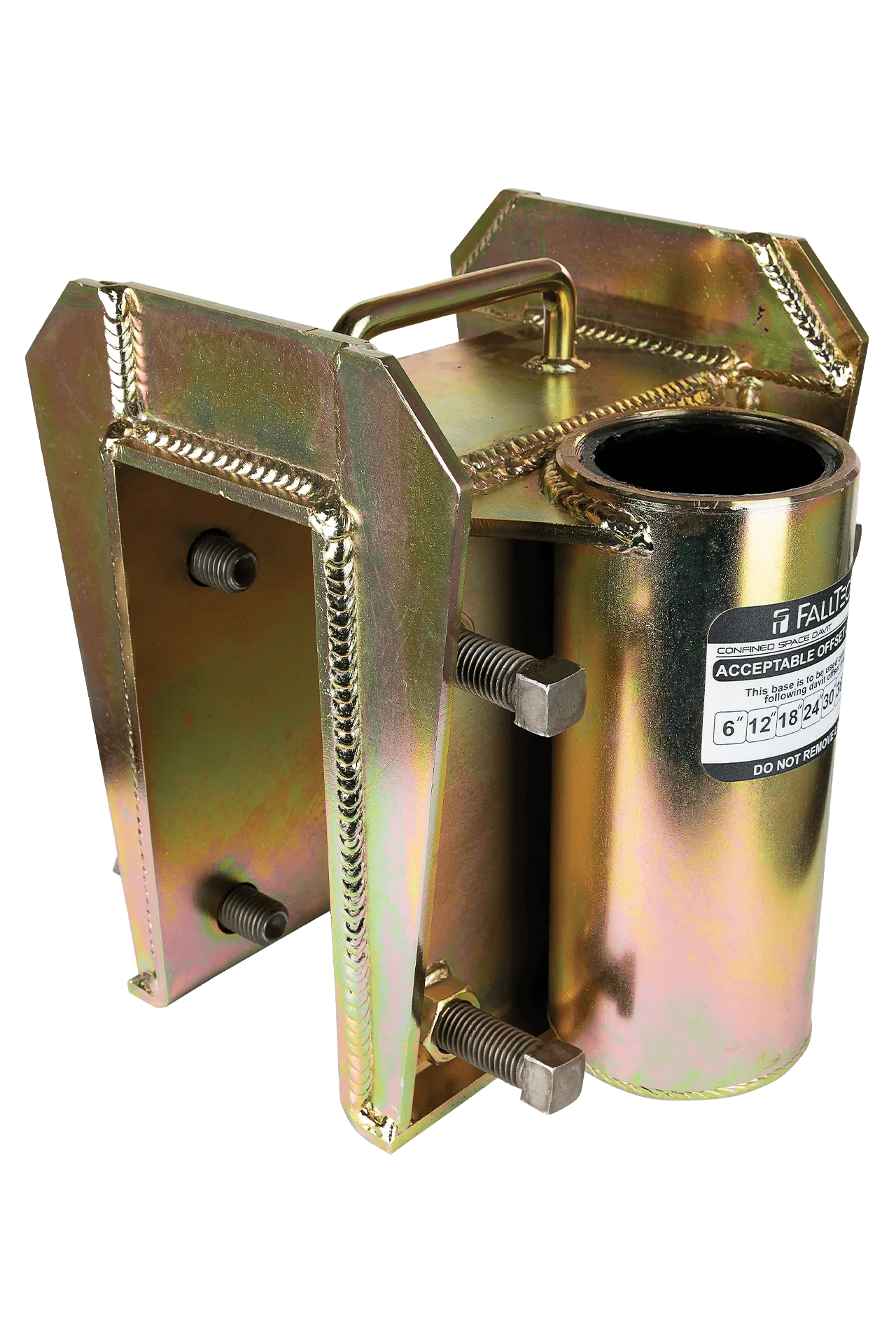

Barrel Mount Davit Base
Barrel Mount Davit Base
FEATURES
- Features bolt-on installation to existing edges, walls and other properly rated structures up to 3-1/2"" thick
- Designed for use with FallTech® 29" and 44" Offset Davit Arms and one of four lower mast extensions.
- Plated steel construction with PVC sleeve insert and integral carry handle for portability
- Includes 8 pcs 3/4" x 3" square head set screws for securing to structure
- Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions
MATERIAL SPECIFICATIONS
Davit Base: Plated carbon steel
Sleeve Insert: PVC pipe
PERFORMANCE SPECIFICATIONS
Rescue Static Strength: 6,750 lb min.
Entry/Egress Static Strength: 1,800 lb min.
Rescue User Capacity: 2 users, 310 lb max. for each person
Entry/Egress Capacity: 1 user, 310 lb max.
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure
COMPLIANT WITH:
OSHA 1926.502 and 1910.66 when used in a complete system
$645.92
Original: $1,845.50
-65%Barrel Mount Davit Base—
$1,845.50
$645.92Product Information
Product Information
Shipping & Returns
Shipping & Returns
Description
Barrel Mount Davit Base
FEATURES
- Features bolt-on installation to existing edges, walls and other properly rated structures up to 3-1/2"" thick
- Designed for use with FallTech® 29" and 44" Offset Davit Arms and one of four lower mast extensions.
- Plated steel construction with PVC sleeve insert and integral carry handle for portability
- Includes 8 pcs 3/4" x 3" square head set screws for securing to structure
- Meets OSHA 1926.502 regulations only when used with offset davit arms and mast extensions
MATERIAL SPECIFICATIONS
Davit Base: Plated carbon steel
Sleeve Insert: PVC pipe
PERFORMANCE SPECIFICATIONS
Rescue Static Strength: 6,750 lb min.
Entry/Egress Static Strength: 1,800 lb min.
Rescue User Capacity: 2 users, 310 lb max. for each person
Entry/Egress Capacity: 1 user, 310 lb max.
DOWNLOADS
Instruction Manual
Declaration of Conformity
Sell Sheet/Brochure
COMPLIANT WITH:
OSHA 1926.502 and 1910.66 when used in a complete system
